Features

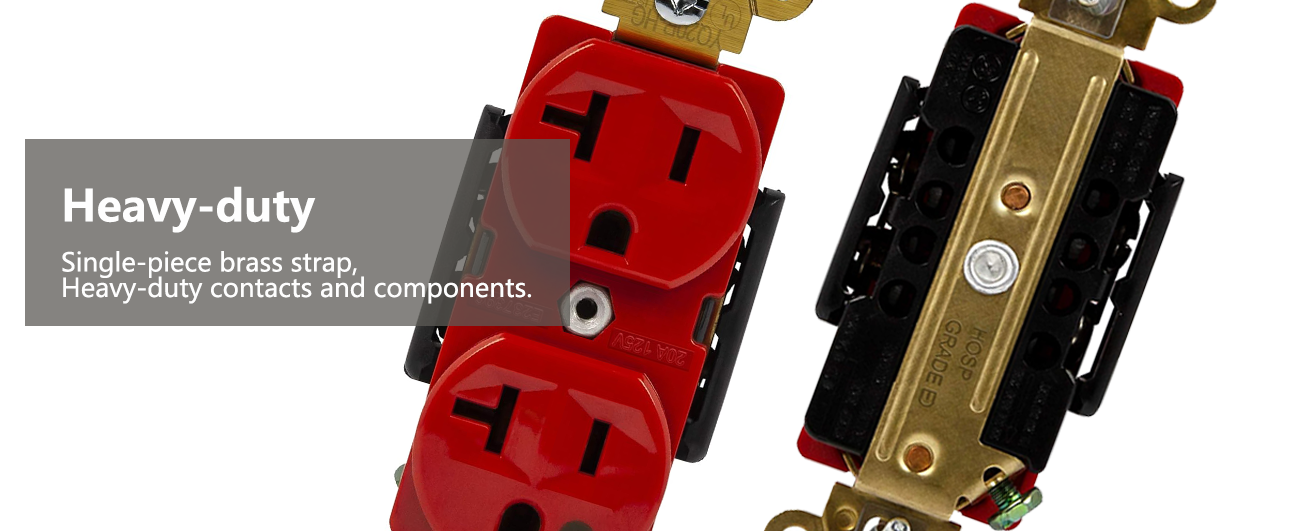

- Heavy-duty Straight Blade Devices Hospital grade outlet made of high-quality polycarbonate material and heavy-duty contacts and components An extra-hard thermo-endused body resists scratching and chipping, maintains a sleek look and enhances temperature resistance. - Proctive Barriers provide insulation and prevent terminals from touching the junction box. - Back and Side-wiring Options Accept #10-#14 AWG cooper wire only. - All-Thermoplastic Body An extra-hard thermo-endused body resists scratching and chipping, maintains a sleek look and enhances temperature resistance. Details
| Part Number | YQ15R-HG | YQ20R-HG |
| Receptacle Amp | 15 Amp | 20 Amp |
| Voltage | 125VAC | 125VAC |
| Tamper Resistant | — | — |
| Self-Grounding | √ | √ |
| Side Wired | √ | √ |
| Back Wired | √ | √ |
| Push In Wired | — | — |
| Color | White,Red | |
| Material | Polycarbonate | Polycarbonate |
| NEMA | 5-15R | 5-20R |
| Certification | UL/CUL Listed | UL/CUL Listed |
| Environmental | Flammability UL94, V2 Rating | Flammability UL94, V2 Rating |
| Operating Temperature | -40°C (without impact) to 75°C | -40°C (without impact) to 75°C |
| Warranty | 2 years | 2 years |
Advantage
- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time. - Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM. - Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality. - Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc. - Highly automated production lines which contribute cost saving and assure better lead time. - Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China. - UL approved lab offers expert testing and covers all concerns. - All products UL/ETL approved.Dimension
