Shop The Best 360 Degree PIR Line Voltage Occupancy Sensor MPC-50V For Factory Use

Ceiling Occupany Sensor 360 Degreen Passive Infrared Line Voltage Occupancy Sensor MPC-50V

The MPC-50V 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient. The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a specified time the lights are switched off.

Feature

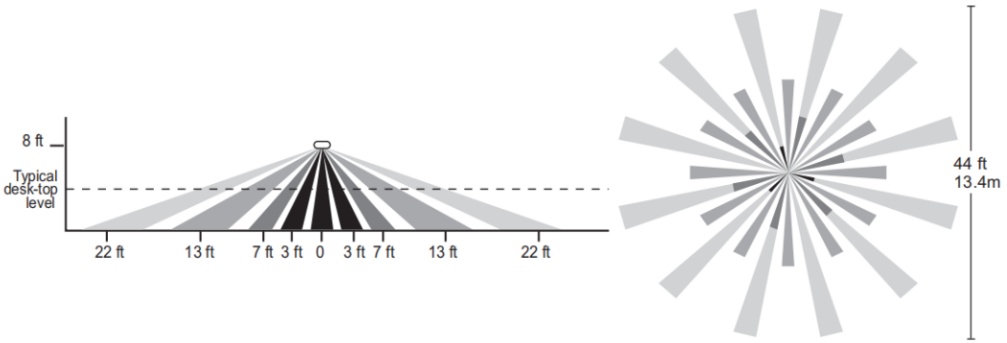

--360 degreen PIR sensor The MPC-50V provides a 360° coverage pattern, up to 1200 square feet. The coverage shown represents walking motion at a mounting height of 8 feet. For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease. -- Versatile Compatibility Ideal for a range of lighting solutions, with LED, Incandescent, Electronic Ballast Fluorescent, Resistive, Motor. -- Adjustable Settings Customize to your preferences with a time delay from 15 sec to 30 mins, adjustable sensitivity, and adjustable light level sensing to fit your specific needs. --Typical Applications Great for warehouse aisles, businesses, bathrooms, hallways and offices.

Technical Details

Part Number	MPC-50V
Input Voltage	120-277V AC
Incandescent	800 W@120V AC
Ballast	800VA @120V AC, 1600VA@277V AC
Resistive	10A@120V AC
Motor	1/4HP @120V AC
Circuit Type	Single Pole
Switch Type	Push Button Switch
Neutral Wire Required	Required
Usage	Indoor Use Only, In-Wall Use Only
Operating Temperature	32°F to 131°F(0°C to 55°C)
Time Delay	15 Sec to 30 Min
Light Level	10FC-150 FC
Batteries Included?	No
Batteries Required?	No
