Product Description

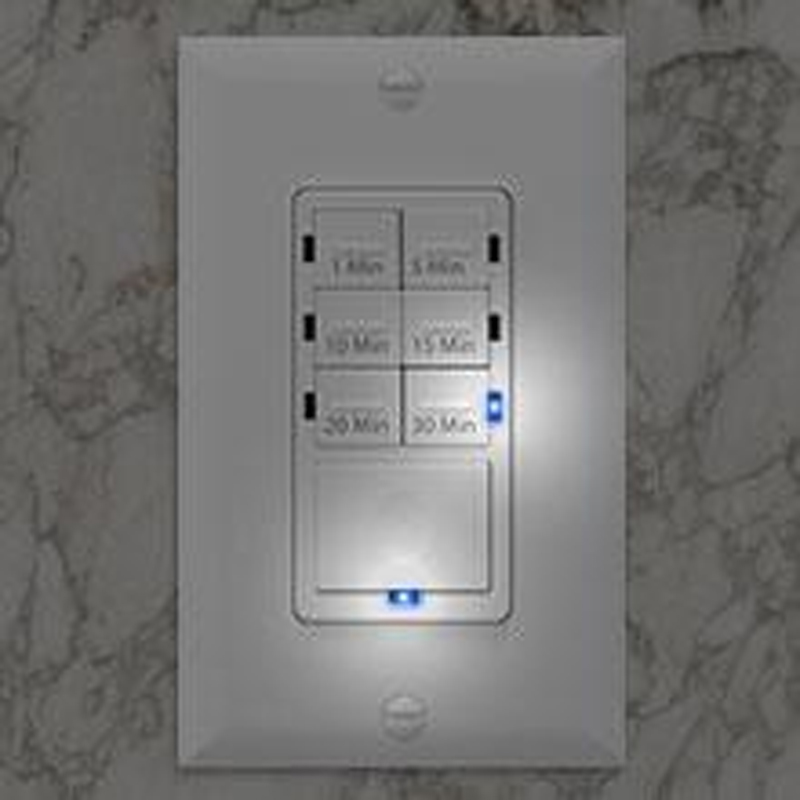

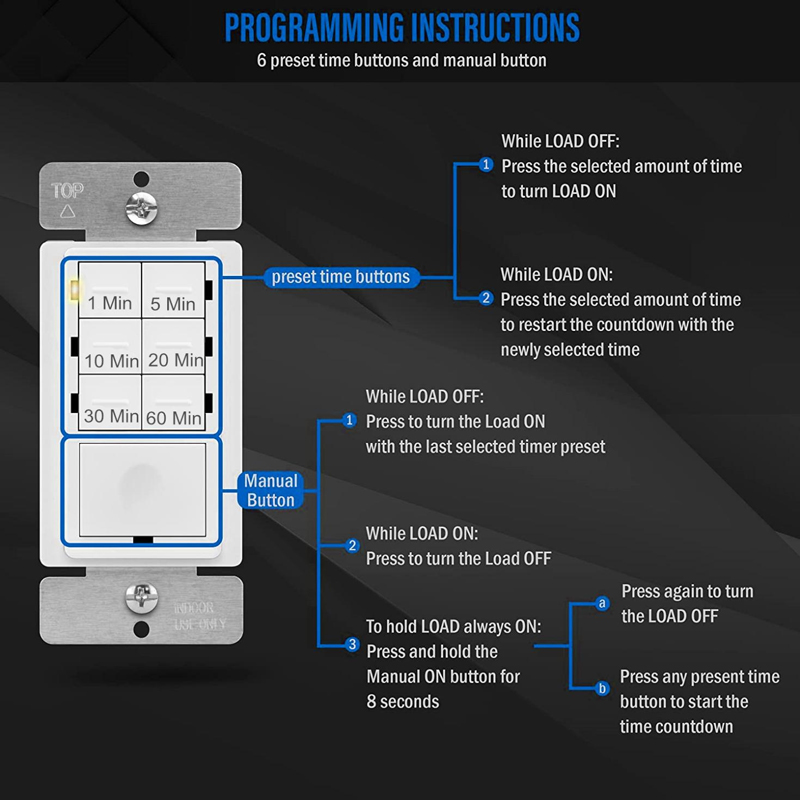

The preset countdown timer replaces standard single-pole wall switch for energy savings throught the home. It turns controlled lights or fans off when the selected time expires. Turning loads on with HET06-R is accomplished by pressing the desired time selection or on/off bbutton. After one button is pressed, lights will remain on for the duration of the selected time delay that was new setting or last setting used. You can manually turn off the load before the time delay expired by pressing the on/off button. To change the time delay setting, press the desired time selection button and the HET06-R will change to that countdown interval. When the Timer Switch is powered on, it is ready to be set.
Features

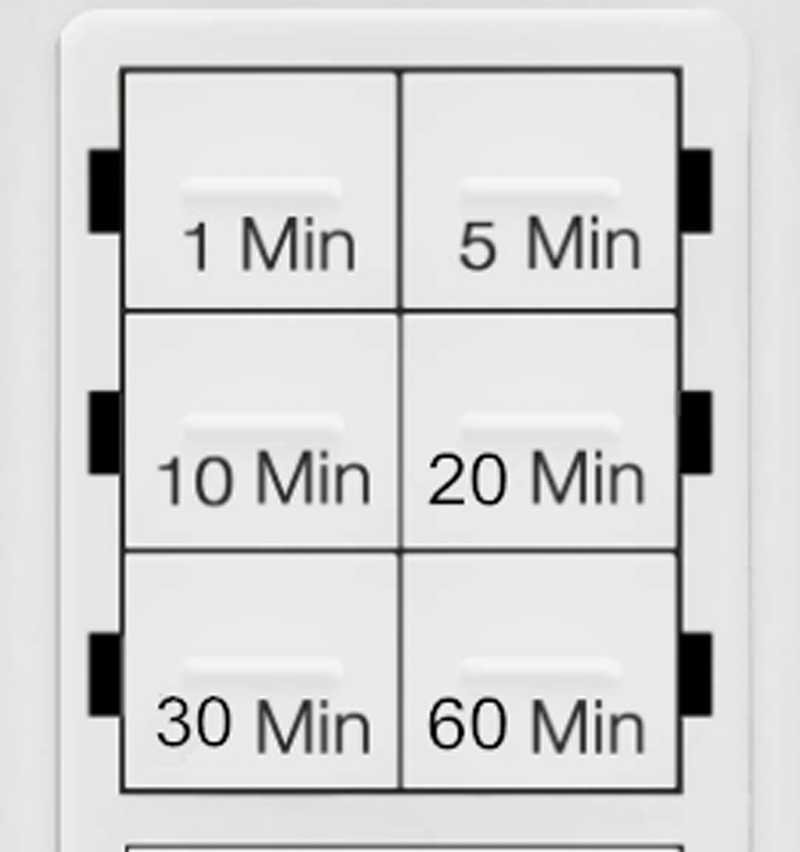

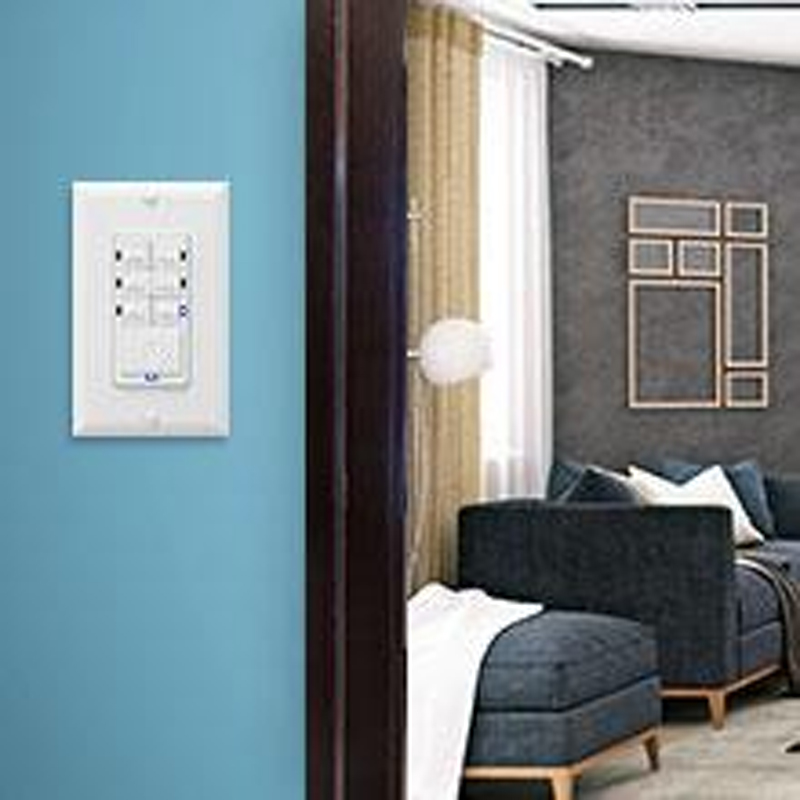

- 6 Times Options Adjustable time Delay: 1, 5, 10, 20, 30, 60 minutes. Time can be customized. - LED Indicator Mode 1: Light flashes twice to show the new countdown interval is set. When the set time is out, the indicator light under the on/off will also flash twice. Mode 2: LED stays on during the selected time delay then shuts off - Home Comfort Easy to install and compatible with most lighting types. Ideal for closet, pantry, garage, laundry room, and outdoor lighting. - Savings Economical option to help save on your monthly electricity bill. Never will there be lights left on in an unoccupied room. - TYPICAL APPLICATIONS: ■Closet ■Laundry Room ■Spa ■ Outdoor Lighting ■ Pantry ■ Garage Technical Details
| Part Number | HET06-R |
| Voltage | 125VAC, 60Hz |
| Resistive | 15A |
| Ballast | 1200 VA |
| Tungsten | 1000W |
| Electronic Ballast/LED | 5A or 600W |
| Motor | 1/2HP |
| Switch Type | Push Button Switch |
| Neutral Wire Required | Required |
| Usage | Commercial/Residential indoor use only |
| Operating Temperature | 32°F to 131°F(0°C to 55°C) |
| Humidity | 95% RH, non-condensing |

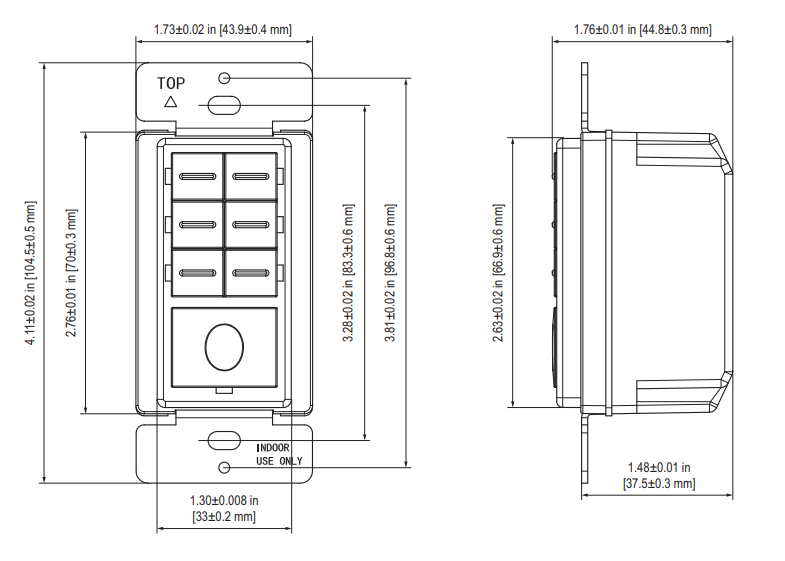

Dimension
TESTING & CODE COMPLIANCE
- UL/CUL listed - ISO9001 Registered Manufacturing Facility
